Welded Edges Honeycomb Belt Conveyor For Packing , Customizable High Temperature Belt

Name: Welded Edges Honeycomb Belt Conveyor For Packing Customizable High Temperature Belt
Brand: Guangya
Price: 1 USD

Brand Name : Guangya

Model Number : GY-F07

Certification : ISO9001-2008

Place of Origin : Shenzhen, China

MOQ : 20 meters

Price : negociable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000 square meters per month

Delivery Time : 5-10 days

Packaging Details : Thin film and wooden box

Material : stainless steel 304/310S/314S

Wire Diameter : 1.5mm~3.0mm

Belt type : High temperature wire belt

Size : by client side requirement

Edge treatment : chain edge or pressed

Application : baking & curing furnace

Chemical resistance : Acid & alkali resisting

Custom design : custom design available

Contact Now

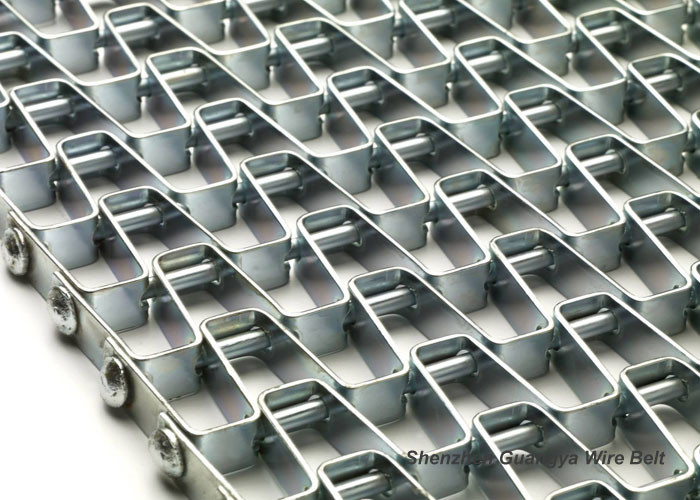

Honeycomb Mesh Belt for Packing, Boat, Packing, Heating Industry

mesh belt is also called Flat Wire Belt. The flat wires are arranged in the form of lattice and jointed with the straight cross rods.
With the precise flat wire belt design, there is no product slippage, vibration, sprocket jumping or adjustment shimmy.
Two different edges: Clinched edges or welded edges
Clinched edges form a clean, smooth selvage which prevents the wire belt from necking down and hanging up on the side of the conveyor.
Since the metal belt edge has not been metallurgically altered through the welding process, it is stronger and lasts longer.
Many clients choose the Welded edges since they are also clean and smooth and more economical than clinched ones.
Materials
SUS304, SS316, SS316L, carbon steel or any kind as customers need

Specification :

specification	Flat wire pitch	Rod pitch	Rod dia	Flat wire size	Weight(KG/M2)
FW-24-27.3-5-1.5×12.7	24	27.3	5	1.5×12.7	17.59
FW-24-27.3-5-1.5×12.7	24	27.3	5	1.5×12.7	16.01
FW-24-27.3-3-1.2×9.5	24	27.3	3	1.2×9.5	9.06
FW-18-27.4-5-1.5×12.7	18	27.4	5	1.5×12.7	19.74
FW-16-27.4-3-1.2×9.5	16	27.4	3	1.2×9.5	11.03
FW-15-27-3-1.2×14.1	15	27	3	1.2×14.1	16.58
FW-12.7-25.4-5-1.5×12.7	12.7	25.4	5	1.5×12.7	23.89
FW-12.7-25.4-5-1.5×14.1	12.7	25.4	5	1.5×14.1	26.09
FW-25.4-25.4-5-1.2×14.1	25.4	25.4	5	1.2×14.1	16.96
FW-12.7-25.4-5-1.2×14.1	12.7	25.4	5	1.2×14.1	22.01
FW-14-19.05-4-1.2×12	14	19.05	4	1.2×12	19.87
FW-14-13.7-3-1.2×9.5	14	13.7	3	1.2×9.5	17.21

Avdantage mesh conveyor belts :

width:150~5500mm speed:0.15~0.50m/min Temperature:-40°C~1050°C

Edage form: bay-side, duntou, weld etc.

1. Convenient and flexible use

2. Good transparency

3. Anti-high temperature and anti-corrosion

4. Steady performance.

5. Surface smooth, uniform through-hole

6. Standard chain drive, running smoothly, no deviation phenomenon

7. Load capacity and strong tensile

8. Easy to clean, easy to maintain

Welded Edges Honeycomb Belt Conveyor For Packing , Customizable High Temperature Belt

Why Us

1. Strict QC System
We have been engaged in production of shale shaker screen fore more than 15 years, we have strict quality control system and we have applied the patent of the screen, we can assure the best quality of every sheet of screen we produced.
2. Direct Manufacturer
We’re one direct manufacturer, which is very close to Tianjin Port. We are the earliest manufacturer of Shale Shaker Screen which is founded in 1989.
3. Short Production
Time We can complete production within 10 days and we usually prepare the material for every kind of our product. So we can deliver the goods as soon as possible.
4. In Return
When your annual purchase amount is over 10000 sheet, we’ll give you 2%-3% of the amount in return.
5. Best After-sale Service
We have professional after-sales service team, which consist of five people, and each has more than three years experience. If you have any questions after you receive the cargo, you can call us or send email all day.
6. Supply free samples
As we have above advantages, we can supply you free samples for your trial to test if you have great intention to order
